Displacement and Dimensional Transducers
Digital Gauging Probes – to measure dimensions:
- Used for precision dimensional measurement – user-friendly digital network
- Wide range of measurement strokes with excellent repeatability – robust ensuring a long sensor life
- Calibration against laser interferometer traceable to the UK NPL
- Spring/pneumatic push and vacuum retract actuation
- Direct readout in mm or inch
Displacement Products – to determine positions:
LVDT Displacement Transducers:
- From 3mm to 300mm stroke
- Very long life (no wear)
- Low friction – high speed
- AC, DC, 4-20mA or Orbit Digital network output
- Typically used for position control
Magnetostrictive Transducers:
- Very long stroke (up to 7.6 metres)
- Rugged construction 1000g vibration
Specialist Gauging Transducers are also available, such as Block Gauges, Mini Probes and Fixture Gauges.

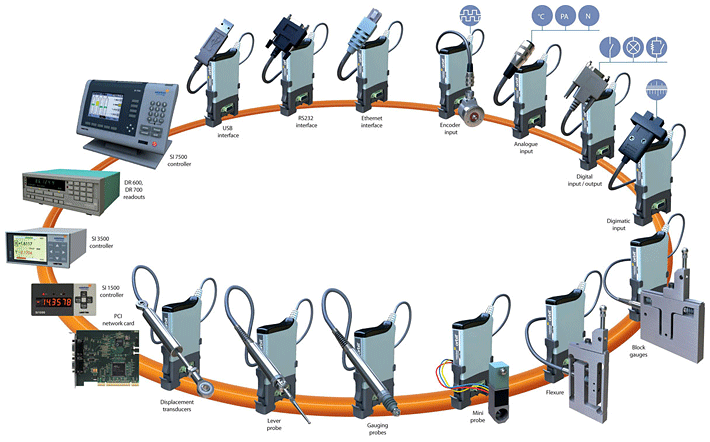

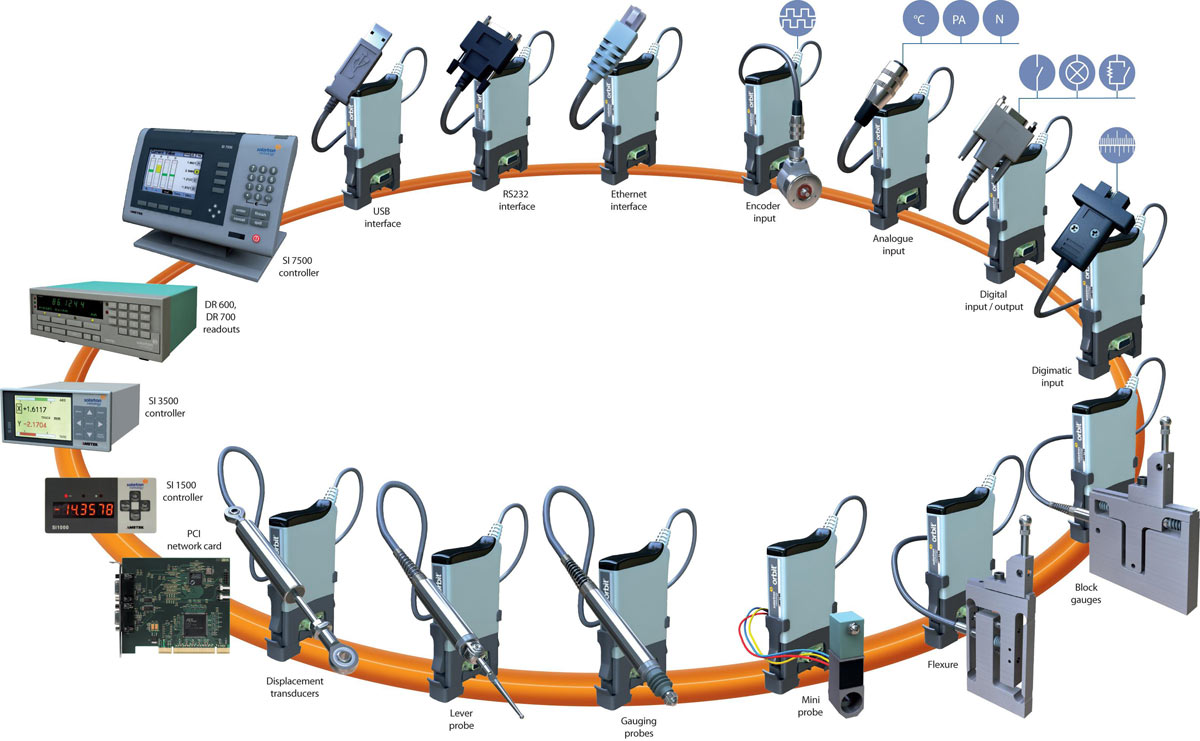

Orbit3 High Speed Networking System
- Large capacity: connect up to 200 probes (including third party sensors)
- Plug-and-go interfaces to the PC, laptop or PLC controller of your choice (USB, RS232, ETHIM, PCI)
- Simple modular approach – ‘hot swappable’ sensors
Watch the Solartron video for further details:
Spectrum Metrology is the authorised distributor of the Solartron Metrology range of linear products. Solartron Metrology’s products provide precise linear measurements for quality control, test and measurement and machine control.
